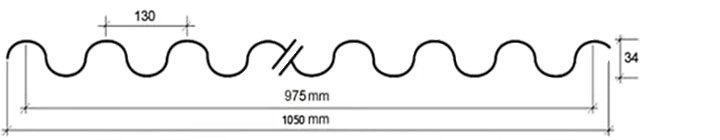

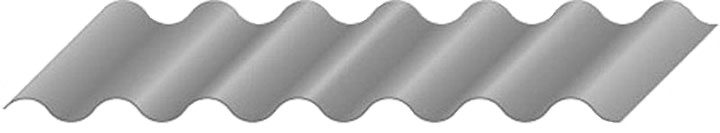

S-S 34-975 OLUKLU SAÇ LEVHA
YAYILI YÜK KAPASİTELERİ
| AŞIK ARALIĞI (mm) |
LEVHA KALINLIĞI (mm) | |||||||||||
| 0,30 | 0,35 | 0,40 | 0,50 | 0,55 | 0,65 | 0,75 | 0,85 | 0,95 | 1,05 | 1,25 | ||
| 1000 | 312.0 | 364.5 | 417.0 | 520.5 | 573.0 | 676.5 | 780.0 | 885.0 | 988.5 | 1039.5 | 1249.5 | |
| 1100 | 258.0 | 300.0 | 345.0 | 430.5 | 472.5 | 559.5 | 645.0 | 730.5 | 817.5 | 861.0 | 1032.0 | |
| 1200 | 216.0 | 253.5 | 289.5 | 361.5 | 397.5 | 469.5 | 541.5 | 615.0 | 687.0 | 723.0 | 867.0 | |
| 1400 | 159.0 | 186.0 | 213.0 | 265.5 | 292.5 | 345.0 | 399.0 | 451.5 | 504.0 | 531.0 | 637.5 | |
| 1500 | 138.0 | 162.0 | 184.5 | 231.0 | 255.0 | 300.0 | 346.5 | 393.0 | 439.5 | 462.0 | 555.0 | |
| 1800 | 51.0 | 112.5 | 129.0 | 160.5 | 177.0 | 208.5 | 241.5 | 273.0 | 304.5 | 321.0 | 385.5 | |
| 2000 | 79.5 | 91.5 | 103.5 | 130.5 | 142.5 | 169.5 | 195.0 | 222.0 | 247.5 | 259.5 | 312.0 | |
| 2200 | 64.5 | 75.0 | 85.5 | 108.0 | 118.5 | 139.5 | 162.0 | 183.0 | 204.0 | 214.5 | 258.0 | |
| 2400 | 54.0 | 63.0 | 72.0 | 90.0 | 99.0 | 117.0 | 135.0 | 153.0 | 171.0 | 180.0 | 217.5 | |
| 2500 | 49.5 | 58.5 | 66.0 | 84.0 | 91.5 | 108.0 | 124.5 | 141.0 | 159.0 | 166.5 | 199.5 | |
| 2800 | 39.0 | 46.5 | 52.5 | 66.0 | 73.5 | 85.5 | 99.0 | 112.5 | 127.5 | 133.5 | 159.0 | |
| 3000 | 34.5 | 40.5 | 46.5 | 58.5 | 63.0 | 75.0 | 87.0 | 99.0 | 112.5 | 115.5 | 139.5 | |
